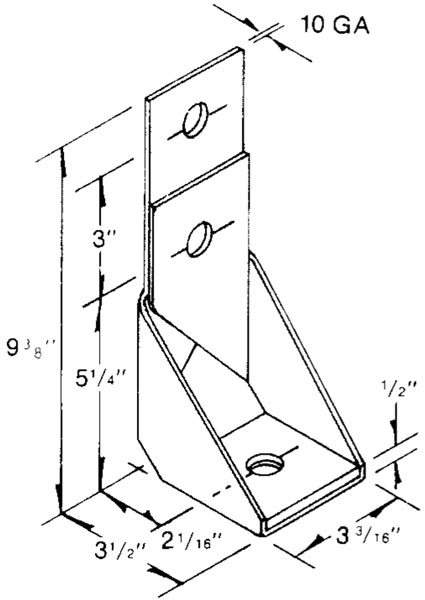

Allowable Vertical Load for ABA Bolted Anchors
- Installation Notes :
Standard washers are required for CAB series; washers are not required for ABA series, however washers are necessary under nuts for both types. Maintain 7 bolt diameter spacing on CAB types: measured from top of plate to center of first bolt. Match drill bolt holes to avoid splitting wood.
Material : 12 gauge, 10 gauge, and 3 gauge.
Finish : Galvanized G60 and black copolymer paint.
Unit of Measure
No. and Dia. of Bolts to Wood |
N/A (2) 3/4" M.B. |
Bolt Dia. to Concrete |
N/A 3/4 in |
Suggested Min. Embedment |
N/A 15 in |
Thickness |
N/A 3 gauge10 gauge12 gauge |
Finish |
N/A Black Copolymer Paint Galvanized G60 |
Load @ 1 1/2 Thickness |
N/A 2360 lbs |
Load @ 2 Thickness |
N/A 3100 lbs |
Load @ 2 1/2 Thickness |
N/A 3840 lbs |
Load @ 3 Thickness |
N/A 4250 lbs |
Load @ 3 1/2 Thickness |
N/A 4655 lbs |
