Allowable Vertical Load for AB Bolted Anchors
- Design Notes:
Allowable loads are predicated on group II wood (SYP/DFL). Duration of load increases of 33-1/3% are included. Minimum end distance of 7 bolt diameters is required. Bolt holes are 1/16" larger than bolt diameter. Vertical members must be checked for net section reduction. Embedment assumes standard J-anchor bolt with 4d return. Embedment can also be met with L-bolt and 12d extension. Bottom plates (mud sills) must be checked for perpendicular-to-grain loading.
Material : 7 gauge and 3 gauge.
Finish : Black Copolymer Paint.
Unit of Measure
No. and Dia. of Bolts to Wood² |
N/A (3) 7/8 M.B. |
Bolt Dia. to Concrete |
N/A 1 1/8 in |
Suggested Min. Embedment³ |
N/A 15.0 in |

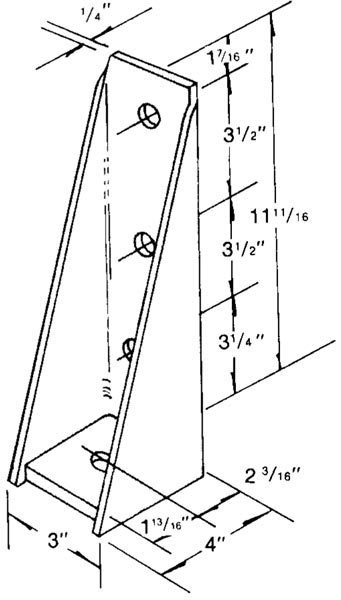

Height |
N/A 11 11/16 in |
Thickness |
N/A 1/4 in |
Finish |
N/A Black Copolymer Paint |
Load @ 1 1/2 Thickness |
N/A 4185 lbs |
Load @ 2 1/2 Thickness |
N/A 6833 lbs |
Load @ 3 1/2 Thickness |
N/A 8928 lbs |
