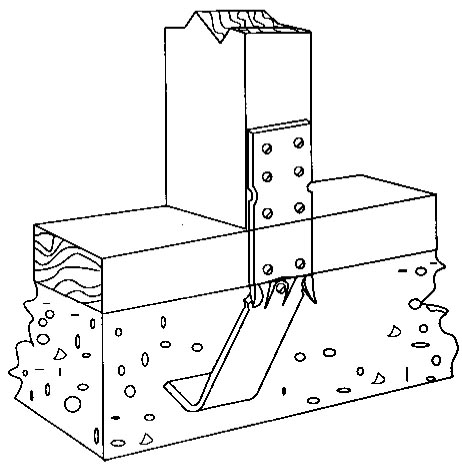

Anchors mudsill and/or stud to slab or footer. Hammer prongs into form before pour or MS-10 can be positioned after pour.
Easy to screed concrete and wrap around sill or nail to stud.
Excellent 1100 lb. uplift rating.
Material : 16 ga.
Finish : Galvanized
Easy to screed concrete and wrap around sill or nail to stud.
Excellent 1100 lb. uplift rating.
Material : 16 ga.
Finish : Galvanized
Unit of Measure
Fasteners - Side |
N/A (2) 10d x 1 1/2" |
Fasteners - Top |
N/A (6) 10d x 1 1/2" |
Design Load (Uplift) |
N/A 1118 lbs |
Design Load (Parallel to Plate) |
N/A 1106 lbs |
Design Load Perpendicular to Plate (Toward Anchor) |
N/A 781 lbs |
Design Load Perpendicular to Plate (Away from Anchor) |
N/A 1000 lbs |
Thickness |
N/A 16 gauge |
Finish |
N/A Galvanized |
