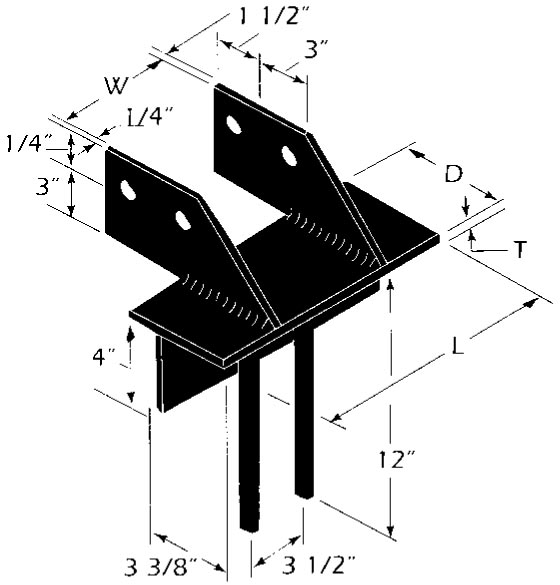

Beam Seats anchor glulam beams to concrete and masonry supports. Seismic and wind resistance is provided. Special types are available.
Material : 3 ga., 5/16" and 3/8".
Finish : Black copolymer paint, Hot-dip galvanized or stainless steel.
Duration of load increases of 33% and 60% are listed. Further increases are not allowed. Allowable loads for concrete, masonry, and wood to be verified by design engineer.
Material : 3 ga., 5/16" and 3/8".
Finish : Black copolymer paint, Hot-dip galvanized or stainless steel.
Duration of load increases of 33% and 60% are listed. Further increases are not allowed. Allowable loads for concrete, masonry, and wood to be verified by design engineer.
Unit of Measure
L |
N/A 20 |
T |
N/A 3/8 in |
D |
N/A 6 1/2 |
Bolts Schedule |
N/A (2) 3/4 |
Finish |
N/A Black Copolymer Paint Hot-Dip Galvanized Stainless Steel |
F1c (Perpendicular) = 460 psi @ 3 1/8 Beam Width (W) |
N/A 9345 lbs |
F1c (Perpendicular) = 460 psi @ 3 1/2 Beam Width (W) |
N/A 10465 lbs |
F1c (Perpendicular) = 460 psi @ 5 1/8 Beam Width (W) |
N/A 15325 lbs |
F1c (Perpendicular) = 460 psi @ 5 1/2 Beam Width (W) |
N/A 16445 lbs |
F1c (Perpendicular) = 460 psi @ 6 3/4 Beam Width (W) |
N/A 20185 lbs |
F1c (Perpendicular) = 460 psi @ 7 1/2 Beam Width (W) |
N/A 22425 lbs |
F1c (Perpendicular) = 460 psi @ 8 3/8 Beam Width (W) |
N/A 26160 lbs |
F1c (Perpendicular) = 460 psi @ 10 3/4 Beam Width (W) |
N/A 32145 lbs |
Horizontal Load @ 133% |
N/A 8195 lbs |
Horizontal Load @ 160% |
N/A 9835 lbs |
Uplift 133% for 3 1/8 Beam Width (W) |
N/A 3250 lbs |
Uplift 133% for 3 1/2 Beam Width (W) |
N/A 3640 lbs |
Uplift 133% for >4 1/2 Beam Width (W) |
N/A 4665 lbs |
Uplift 160% for 3 1/8 Beam Width (W) |
N/A 3900 lbs |
Uplift 160% for 3 1/2 Beam Width (W) |
N/A 4370 lbs |
Uplift 160% for >4 1/2 Beam Width (W) |
N/A 5595 lbs |
