Girder Hangers are medium duty hangers for girder-to-girder applications.
Bolts are listed in fastener section of catalog.
Material : Back plates are made of 3-gauge A-36 steel, stirrup seats are made of 7-gauge A-36 steel.
Finish : Black copolymer paint.
Bolts are listed in fastener section of catalog.
Material : Back plates are made of 3-gauge A-36 steel, stirrup seats are made of 7-gauge A-36 steel.
Finish : Black copolymer paint.
Unit of Measure

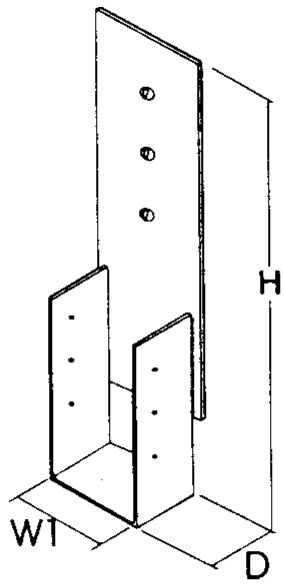

W1 |
N/A 3 1/4 |
H |
N/A 21 3/4 |
D |
N/A 3 |
Bolts |
N/A (3) 3/4 |
Nails |
N/A (8) 10d |
| Material1 | N/A A-36 Steel |
Finish |
N/A Black Copolymer Paint |
Load @ 1-Ply |
N/A 2400 |
Load @ 2-Ply |
N/A 4490 |
Load @ 3-Ply |
N/A 4906 |
Wind Uplift |
N/A 1340 |
Load @ 1-Ply |
N/A 1925 |
Load @ 2-Ply |
N/A 3515 |
Load @ 3-Ply |
N/A 4365 |
Wind Uplift |
N/A 1072 |
- 1 Back plates are made of 3-gauge A-36 steel, stirrup seats are made of 7-gauge A-36 steel.
