HJU Heavy Duty Facemount

A facemount hanger that satisfies most truss to truss applications. Available for single, double and triple plys.

Cautions : Always use a hanger that is the same depth as the girder chord. Do not use HJU 26 on 2 x 8 or 2 x 10.

Material : 16 gauge or 14 gauge.
Finish : Galvanized G60.
Unit of Measure

Size

 N/A 1 3/4 x 7

Steel Gauge

 N/A 16

Finish

 N/A Galvanized G60

Load @ 565 psi, Normal 100%

 N/A 4085 lbs

Load @ 565 psi, 115%

 N/A 4700 lbs

Load @ 565 psi, 125%

 N/A 4995 lbs

Load @ 565 psi, Uplift

 N/A 1900 lbs

Load @ 425 psi, Normal 100%

 N/A 3245 lbs

Load @ 425 psi, 115%

 N/A 3735 lbs

Load @ 425 psi, 125%

 N/A 4060 lbs

Load @ 425 psi, Uplift

 N/A 1527 lbs

Carrying Member

 N/A (28) 16d

Carried Member

 N/A (14) 10d x 1 1/2

N/A 1. Tabulated allowed load values are based on the following :

  • Applicable only for Southern Yellow Pine, when connectors are used with lumber having specific gravity equal to or greater than 0.55 and an allowable compression perpendicular-to-grain value equal to or greater than 565 psi (Southern Pine except non-dense grades).
  • Applicable only for Spruce-Pine Fir when connectors are used with lumber having a specific gravity equal to or greater than 0.42 and an allowable compression perpendicular-to-grain value equal to or greater than 425 psi.
  • Douglas Fir-Larch lumber is permitted by reducing the values applicable to Southern Pine by 9 percent.
  • For other structural wood members (LVL, PSI, ect.) the appropriate allowable load column shall be selected based on the allowable compression perpendicular-to-grain, value and the allowable nail loads of the material used as compared to sawn lumber in the column selected.
2. Uplift loads are for wind only and contain applicable stress increases (no further increases are permitted.)

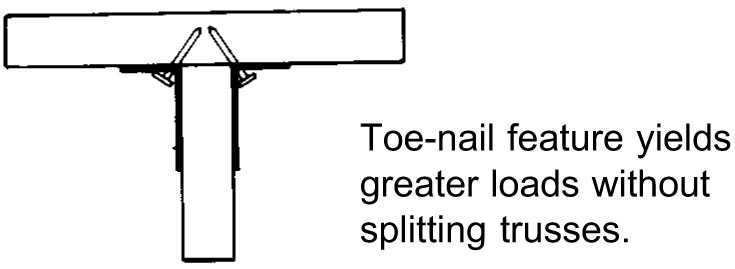

  • To achieve allowable load, all the 16d common nails that are specified must be used including the toe-nails in the corner holes.
  • The 10d by 1 1/2 inch nails are No. 9 gauge joist hanger nails.
All other nails are common nails.
