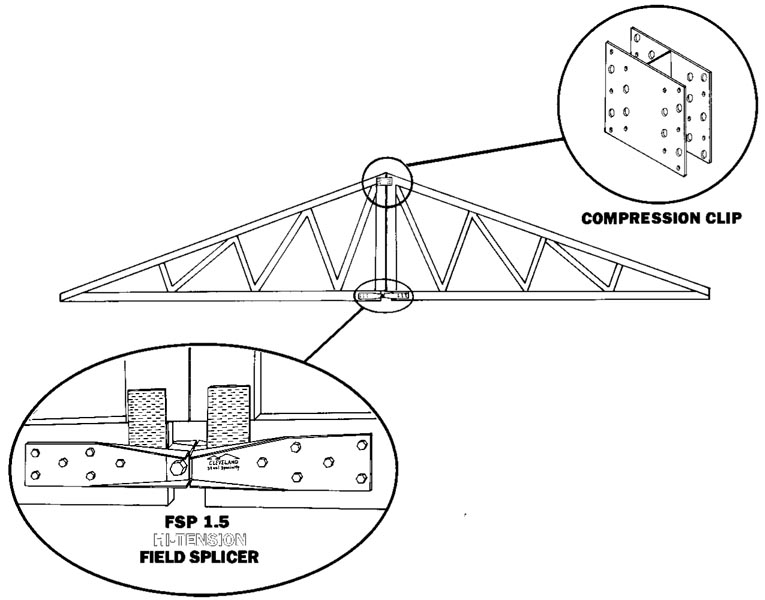

FSP Splicer has been laboratory tested in tension for use on single and double ply mono pitch trusses. Consult the factory for use with scissor trusses. The Compression Clip was designed to align the Top Chord in compression. Each clip has a tension rating of 1400 lbs. with S.Y.P. for short term wind conditions.
Unit of Measure
Tension Rating (S.Y.P.) |
N/A 10380 lbs |
Tension Rating (S. P. F.) |
N/A 7920 lbs |
Type |
N/A Single Ply |
Thickness |
N/A 3 gauge7 gauge |
Finish |
N/A Black Copolymer Paint |
