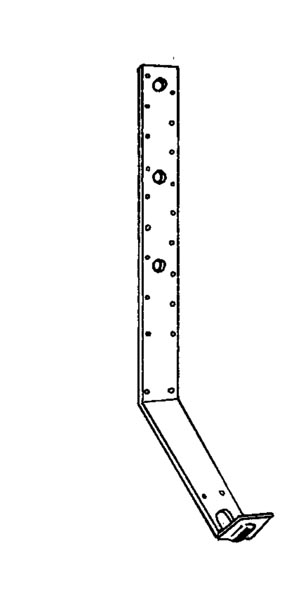

Foundation Ties provide deep embedment in concrete footings for anchorage of wood members.
Material : 12 gauge. and 10 gauge.
Finish : Galvanized G60.
Material : 12 gauge. and 10 gauge.
Finish : Galvanized G60.
Unit of Measure
Steel Gauge |
N/A 12 |
W |
N/A 2 1/16 |
H1 |
N/A 16 5/8 |
H2 |
N/A 6 |
D |
N/A 6 |
Fastener Schedule - Nails |
N/A (18) 16d |
Fastener Schedule - Bolts |
N/A (3) 1/2 |
Min. Embed. |
N/A 6 |
Finish |
N/A Galvanized G60 |
Load @ Nails, 133% |
N/A 3360 lbs |
Load @ Nails, 160% |
N/A 3435 lbs |
Load @ Bolts, 133% |
N/A 1790 lbs |
Load @ Bolts, 160% |
N/A 2150 lbs |
