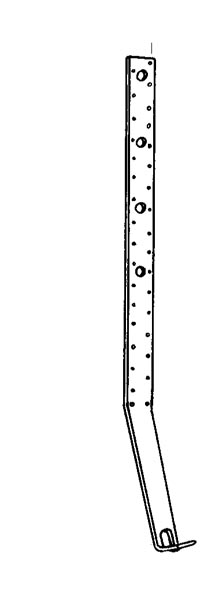

Foundation Ties provide deep embedment in concrete footings for anchorage of wood members.
Material : 12 gauge. and 10 gauge.
Finish : Galvanized G60.
Material : 12 gauge. and 10 gauge.
Finish : Galvanized G60.
Unit of Measure
Steel Gauge |
N/A 10 |
W |
N/A 2 1/16 |
H1 |
N/A 24 3/4 |
H2 |
N/A 10 |
D |
N/A 6 1/4 |
Fastener Schedule - Nails |
N/A (24) 16d |
Fastener Schedule - Bolts |
N/A (4) 1/2 |
Min. Embed. |
N/A 10 |
Finish |
N/A Galvanized G60 |
Load @ Nails, 133% |
N/A 4705 lbs |
Load @ Nails, 160% |
N/A 5645 lbs |
Load @ Bolts, 133% |
N/A 3240 lbs |
Load @ Bolts, 160% |
N/A 3885 lbs |
