Lowest Cost and Most Efficient Method to Brace Walls

Designed to give 8' walls the required code bracing to prevent racking. Quicker to install than 1 x 4 let-in wood bracing. Use T-9 for 60° angle and T-11 for 45° angle. Packed 20 pieces per carton.

Material : 20 ga.
Finish : Galvanized.
Unit of Measure

Length

 N/A 11' 3 5/8"

Nails Schedule - Plate

 N/A (2) 16d

Nails Schedule - Stud

 N/A (1) 8d

Pieces per Carton

 N/A 20

Thickness

 N/A 20 gauge

Finish

 N/A Galvanized

N/A

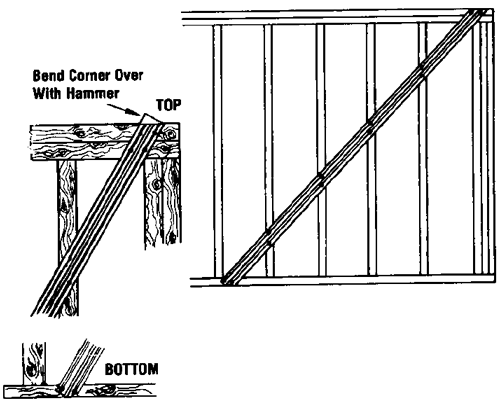

    1. Use the "T-Brace" as a straight edge to mark studs and plates.
    2. Saw a 1/2" deep kerf along the marked line.
    3. Insert base of "T" in kerf and nail along grooves in face of "T-Brace".
