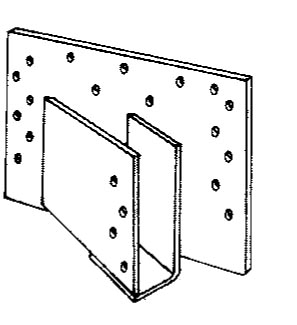

SKW style are face mount. Charted sizes are for single ply pockets. Other pocket widths available with same allowable loads. Heavy 11 gauge or 3/16" steel, black copolymer paint finish.
Unit of Measure
W |
N/A 1 5/8 |
H |
N/A 8 1/4 |
L |
N/A 10 1/2 |
Seat Brg. |
N/A 3 |
Steel Gauge |
N/A 3/16" |
Nail Schedule - Header |
N/A (20) 10d (20) 10d x 1 1/2 (20) 16d |
Nail Schedule - Joist |
N/A (4) 10d x 1 1/2 |
Type |
N/A SKW |
Finish |
N/A Black Copolymer Paint |
Load @ Normal Condition |
N/A 1750 lbs2090 lbs2465 lbs |
Load @ 115% |
N/A 2010 lbs2400 lbs2830 lbs |
Load @ Uplift |
N/A 545 lbs |
