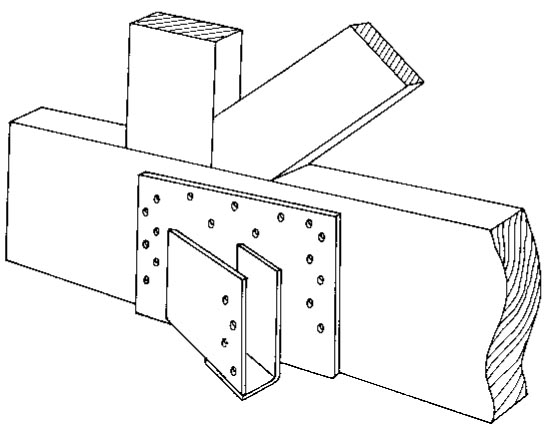

Severe Skew On Cleveland Steel

SKW style are face mount. Charted sizes are for single ply pockets. Other pocket widths available with same allowable loads. Heavy 11 gauge or 3/16" steel, black copolymer paint finish.

SKWE style with top flange bearing.

Material : 11 gauge and 7 gauge.
Finish : Black copolymer paint.

1 - 6 of 6 | Results Per Page | View | Unit of Measure

Request Information Compare Items

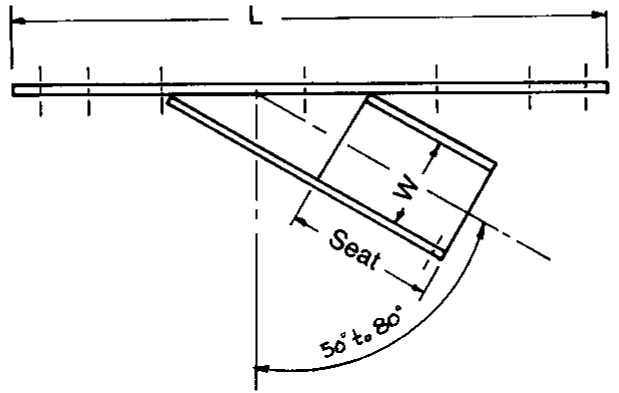

Item #	W	H	L	Seat Brg.	Steel Gauge	Type	Add To Cart/Request Quote

SKW 26	N/A 1 5/8	N/A 5	N/A 9	N/A 2 1/2	N/A 11	N/A SKW	Add To Cart Request Quote
SKW 28	N/A 1 5/8	N/A 6	N/A 10 1/2	N/A 2 1/2	N/A 11	N/A SKW	Add To Cart Request Quote
SKW 210	N/A 1 5/8	N/A 8 1/4	N/A 10 1/2	N/A 3	N/A 3/16"	N/A SKW	Add To Cart Request Quote
SKWE 26	N/A 1 5/8	N/A 5	N/A 9	N/A 2 1/2	N/A 11	N/A SKWE	Add To Cart Request Quote
SKWE 28	N/A 1 5/8	N/A 6	N/A 10 1/2	N/A 2 1/2	N/A 11	N/A SKWE	Add To Cart Request Quote
SKWE 210	N/A 1 5/8	N/A 8 1/4	N/A 10 1/2	N/A 3	N/A 3/16"	N/A SKWE	Add To Cart Request Quote

1 - 6 of 6 | Results Per Page | View | Unit of Measure
