  • Glulam Hinge Strap

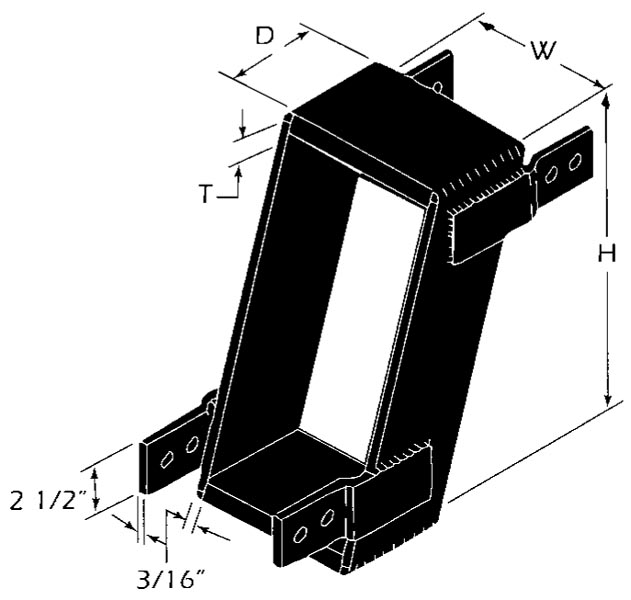

  • Dimensional Drawing

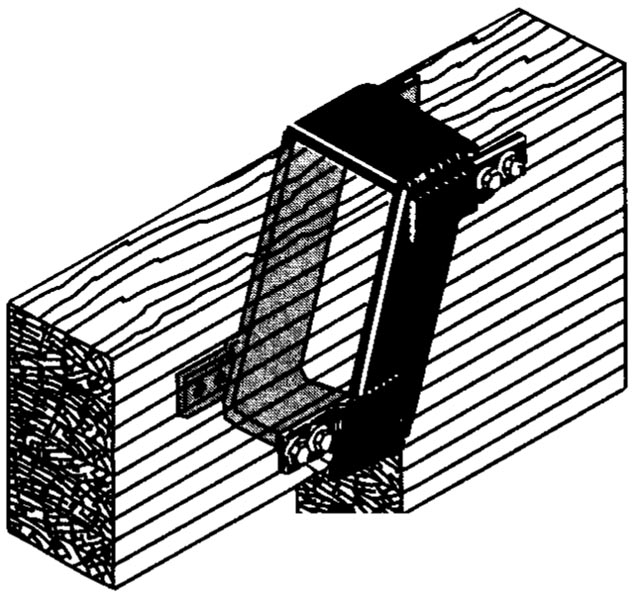

Glulam Hinge Connectors
provide a high capacity connection between the cantilevered member and the supported member in positive vs negative moment situations. Members must be of equal width. Special configurations can be furnished to your specifications.

Material : ASTM A-36 3/4", 1", and 1 1/4".
Finish : Black copolymer paint, Hot-dip galvanized.
1 - 12 of 12 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Beam Width

W

D

T

Load @ Floor 100%

Add To Cart/Request Quote
N/A 5 1/8 N/A 5 1/4 N/A 5 N/A 3/4 N/A 14415 lbs Add To Cart
Request Quote
N/A 5 1/8 N/A 5 1/4 N/A 6 N/A 3/4 N/A 17300 lbs Add To Cart
Request Quote
N/A 5 1/8 N/A 5 1/4 N/A 7 N/A 3/4 N/A 20180 lbs Add To Cart
Request Quote
N/A 5 1/8 N/A 5 1/4 N/A 9 N/A 3/4 N/A 25945 lbs Add To Cart
Request Quote
N/A 6 3/4 N/A 6 7/8 N/A 5 N/A 1 N/A 18985 lbs Add To Cart
Request Quote
N/A 6 3/4 N/A 6 7/8 N/A 6 N/A 1 N/A 22780 lbs Add To Cart
Request Quote
N/A 6 3/4 N/A 6 7/8 N/A 7 N/A 1 N/A 26580 lbs Add To Cart
Request Quote
N/A 6 3/4 N/A 6 7/8 N/A 9 N/A 1 N/A 34170 lbs Add To Cart
Request Quote
N/A 8 3/4 N/A 8 7/8 N/A 5 N/A 1 1/4 N/A 24610 lbs Add To Cart
Request Quote
N/A 8 3/4 N/A 8 7/8 N/A 6 N/A 1 1/4 N/A 29530 lbs Add To Cart
Request Quote
N/A 8 3/4 N/A 8 7/8 N/A 7 N/A 1 1/4 N/A 34450 lbs Add To Cart
Request Quote
N/A 8 3/4 N/A 8 7/8 N/A 9 N/A 1 1/4 N/A 44300 lbs Add To Cart
Request Quote
