Glulam Hinge Strap On Cleveland Steel

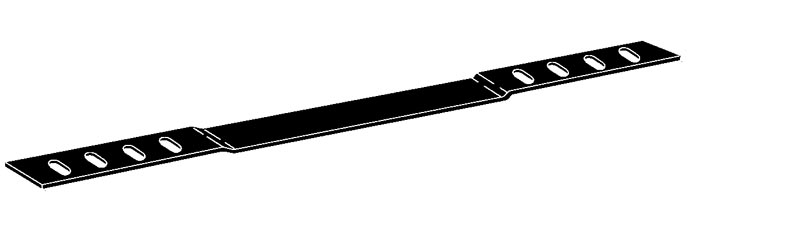

GHS provide additional lateral load capacity when used with GHC connectors. The offset center section provides clearance for hinge connectors.

GHS Straps are installed in pairs in conjunction with glulam hinge connectors. Seismic load duration of load increases of 33% and 60% are listed; no additional increases are permitted.

Material : 7 gauge.
Finish : Black copolymer paint, Hot-dip galvanized.

1 - 6 of 6 | Results Per Page | View | Unit of Measure

Request Information Compare Items

Item #	Item Name	L	W	Bolt Schedule	Add To Cart/Request Quote

GHS-2	N/A Glulam Hinge Strap	N/A 22	N/A 3 1/2	N/A (4) 3/4	Add To Cart Request Quote
GHS-3	N/A Glulam Hinge Strap	N/A 28	N/A 3 1/2	N/A (6) 3/4	Add To Cart Request Quote
GHS-4	N/A Glulam Hinge Strap	N/A 34	N/A 3 1/2	N/A (8) 3/4	Add To Cart Request Quote
GHS-2R	N/A Glulam Hinge Strap with Round Hole	N/A 22	N/A 3 1/2	N/A (4) 3/4	Add To Cart Request Quote
GHS-3R	N/A Glulam Hinge Strap with Round Hole	N/A 28	N/A 3 1/2	N/A (6) 3/4	Add To Cart Request Quote
GHS-4R	N/A Glulam Hinge Strap with Round Hole	N/A 34	N/A 3 1/2	N/A (8) 3/4	Add To Cart Request Quote
